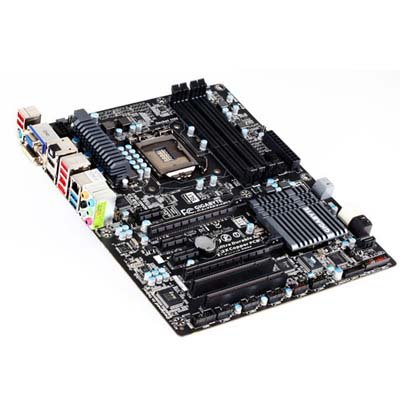

Gigabyte Intel Z68 ATX DDR3 2133 LGA 1155 Motherboards GA-Z68X-UD3H-B3

Gigabyte

$189.09

CPU: Intel Core i7/i5/i3 processors, Intel Pentium processors, Intel Celeron processors in the LGA1155 package .

Memory: 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory, Dual channel memory architecture,

Audio: Realtek ALC889 codec, High Definition Audio, 2/4/5.1/7.1-channel, Support for Dolby Home Theater,

Expansion Slots: 1 x PCI Express x16 slot, running at x16. 1 x PCI Express x16 slot, running at x8. 3 x PCI Express x1 slots.

Storage Interface: Chipset: 2 x SATA 6Gb/s connectors, 3 x SATA 3Gb/s connectors, 1 x eSATA 3Gb/s connector,

1 x front panel header/1 x front panel audio header/1 x S/PDIF Out header/4 x USB 2.0/1.1 headers/1 x USB 3.0/2.0 header/

1 x serial port header/1 x Trusted Platform Module (TPM) header/1 x clearing CMOS jumper

2 x PCI slots. Support for ATI CrossFireX/NVIDIA SLI technology

3 x SATA 3Gb/s connectors/1 x CPU fan header/2 x system fan headers/1 x power fan header/ 1 x IEEE 1394a header/

4 x USB 2.0/1.1 ports/1 x IEEE 1394a port/1 x eSATA 3Gb/s connector/2 x USB 3.0/2.0 ports/1 x RJ-45 port/

6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

Back Panel Connectors:1 x PS/2 keyboard/mouse port/1 x D-Sub port/1 x DVI-D port/1 x optical S/PDIF Out connector/1 x HDMI port/1 x DisplayPort/

Chipset: Intel Z68 Express Chipset. Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules

Internal I/O Connectors:1 x 24-pin ATX main power connector/1 x 8-pin ATX 12V power connector/4 x SATA 6Gb/s connectors/

Marvell 88SE9172 chip:2 x SATA 6Gb/s connectors, Support for SATA RAID 0 and RAID 1

Support for S/PDIF Out. LAN: 1 x Realtek RTL8111E chip (10/100/1000 Mbit)

Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10.

USB: Chipset: Up to 12 USB 2.0/1.1 ports. 2 x Etron EJ168 chips: Up to 4 USB 3.0/2.0 ports.
